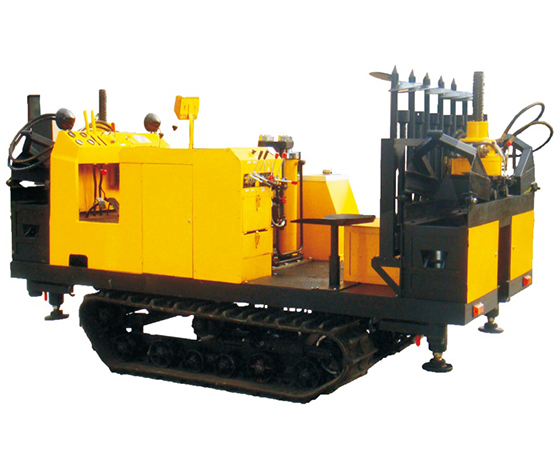

WYCLHydraulic Tracked Static Penetrator
PRODETAIL_NUMBER：
PRODETAIL_TIME：
Browse times：1496

Detail

Characteristic

Parameter

Since the beginning of this century, Nanguang has taken the lead in developing tracked static sounding vehicle. After more than ten years of development and practice, the technical performance and configuration of the product have been continuously improved and improved. At present, there are new products such as WYCL full hydraulic tracked static sounding vehicle and WJCL motor tracked hydraulic static sounding vehicle.
The new tracked static prospecting vehicle has strong and durable structure, high efficiency, wide application range, flexible and convenient use, high degree of automation, and is gradually favored by the engineering survey community. It is not only applied by many units in China, but also sold to Africa, Middle East and other countries. It has been applied in construction projects and achieved remarkable economic benefits.

It can be used in paddy field, beach, sandy land, ice field and other harsh environments.
Labor-saving and high efficiency: only two people can complete the whole static detection test operation, greatly saving labor.
Lightweight anchoring: special rotary ultra-short beam, when anchoring, easy rotation device under the chassis, anchoring can be counterposed.
Flexible hoisting and transportation: There are many hoisting points on the tracked static exploration vehicle, so the hoisting is safe and reliable. In the area without hoisting, the new tracked static sounding vehicle with long legs can lift the whole vehicle 1.4m above the ground and open the legs 2.5m in width, which can be directly loaded and unloaded by a general carrier.
Multi-purpose machine: equipped with accessories, it can be extended for static pore pressure exploration, in-situ testing of pressure wave velocity, flat shovel lateral expansion, cross plate shear, pre-drilling side pressure, resistivity static wiping, etc.

Specification Model: WYCL-20 WYCL-25
Maximum Torque of Anchoring: 2800N.M
Engine power: 22 - 48KW
Anchoring method: rotating short beam
Static penetration force: 200KN 250KN
Long leg stroke 1400 mm short leg stroke 450 mm
Static travel speed is 2.5 km/h at low speed and 4.2 km/h at high speed
Crawler material rubber crawler, steel crawler
Specification of probe rod: 36.40,42 thick-walled seamless pipe, 1m root
Type of down-anchor machine: double-acting down-anchor device
Track specifications: 300mm * 82mm * 55 (number of X teeth with wide x pitch)
